Blue Hydraulic Press Brake bending machine for 3mm thickness 3000mm length for russia user

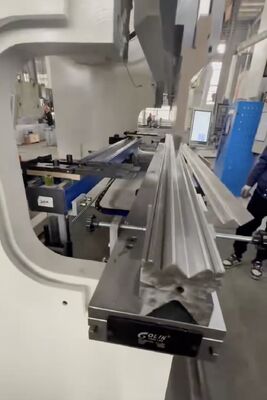

Büyük resim : Blue Hydraulic Press Brake bending machine for 3mm thickness 3000mm length for russia user

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	JINQIU
Sertifika:	CE
Model numarası:	80/3200

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 takım
Fiyat:	LOWE PRICE
Ambalaj bilgileri:	Paketleri dışa aktarma
Teslim süresi:	35 gün

İletişim

Detaylı ürün tanımı

Malzeme:	Hafif çelik	bükme uzunluğu:	3200mm
Kontrol sistemi:	TP10	Renk:	mavi
Tip:	Hidrolik Abkant Pres Makinası	Max. Maks. bending angle bükme açısı:	135°

Item	Unit	80T3200
Control Axis		Y-X-axis
Bending force	Ton	80
Bending length(A)	mm	3200
Distance between columns(B)	mm	2600
Beam Stroke(C)	mm	130
Daylight(D)	mm	375
Throat Depth(E)	mm	400
Working table height(F)	mm	680
WORKING SPEED:
Approaching Speed	mm/sec	180
Work Speed	mm/sec	12
Return Speed	mm/sec	140
BACKGAUGE:
Max Speed X-axis	mm/sec	150
Max Travel X- Axis	mm	500
Max Travel R- Axis	mm	/
Finger Block	Pcs	3
Support Arms	Pcs	2
CAPACITY:
Motor Power	KW	7.5
Overall dimensions (LxWxH)	mm	3700x1800x2450
Machine weight	kg	6200

MODEL	CNC Double Servo Press Brake
APPEARANCE
CONTROL SYSTEM	TP10 S (China)
CNC AXIS	Y+X
MAIN MOTOR (Three-phase Asynchronous)	HUYUAN(CHINA)
Y+X AXIS MOTOR	POWMAX (China)
GUIDE RAIL	Ball Screw and Linear Guide Rail (China)
CYLINDER	HUAYI (China)
HYDRAULIC SYSTEM	Boch Rexroth (Germany)
HYDRAULIC PUMP	HUIXI (China)
SEAL RING	(Japan)
MAIN ELECTRIC COMPONENTS	Schneider (France)
CLAMP	Fast Clamp (side draw)
MOLD	Square Mold(Standard) CNC Double-V Mold(optional)
VOLTAGE/HZ/PHASE (can be customized)	380V/50HZ/Three-phase
