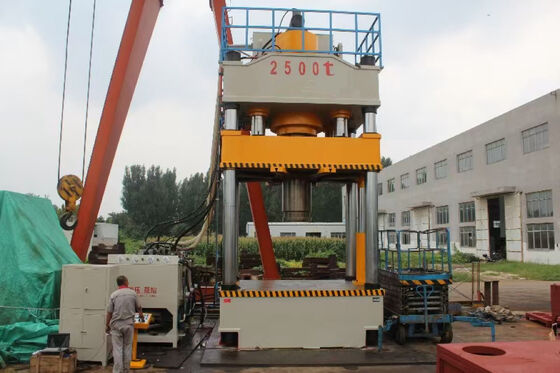

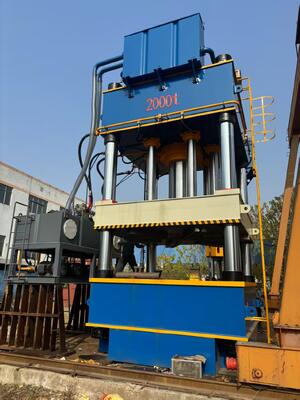

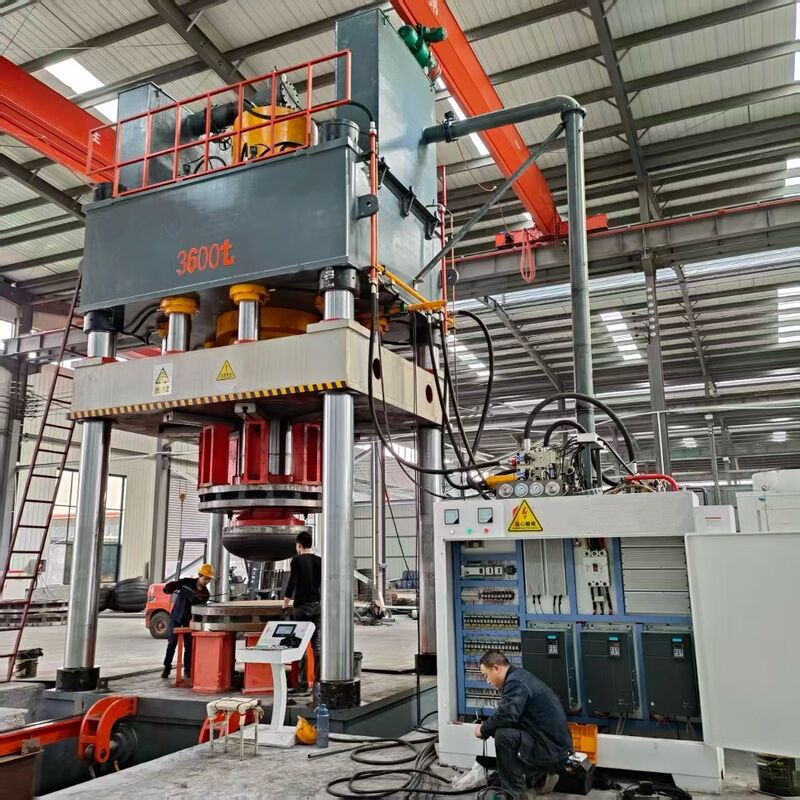

3600T/1200T hot hydraulic press machine for tank dish making

Büyük resim : 3600T/1200T hot hydraulic press machine for tank dish making

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	jinqiu
Sertifika:	CE
Model numarası:	3600T/1200T

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 takım
Fiyat:	9999USD
Ambalaj bilgileri:	fabrikamızda ihracat ve yükleme
Teslim süresi:	8 hafta

İletişim

Detaylı ürün tanımı

Ana silindirin anma kuvveti:	36000KN	Nominal boş tutucu kuvveti:	12000KN
Masa Boyutu:	5000x5000	İşlev:	sıcak pres tankı çanağı
Amaç:	tank yapmak

Technical Agreement

1. Equipment Model & Name

Model: YL27-3600t/1200t

Name: Hot Press Head Forming Machine

2. Main Technical Parameters

No.	Item	Unit	Specification
1	Rated force of main cylinder	kN	36000
2	Rated blank holder force	kN	1200
3	Rated ejection force	kN	2000
4	Working hydraulic pressure	MPa	25
5	Effective stroke of main cylinder	mm	2800
6	Stroke of blank holder cylinder	mm	1600
7	Ejection stroke	mm	1600
8	Max. distance from lower surface of main cylinder ram to worktable	mm	4400
9	Effective size of worktable Inner distance between left & right columns Inner distance between front & rear columns	mm mm	5000 5000
10	No-load descending speed of main cylinder	mm/s	150
11	Forming speed	mm/s	30-40
12	Return speed (main cylinder)	mm/s	120
13	Fast descending speed of blank holder beam	mm/s	180
14	Return speed (blank holder)	mm/s	100
15	Ejection speed	mm/s	20-98
16	Retracting speed	mm/s	90
17	Motor power for main cylinder	kW	110 kW × 10
18	Servo motor power for blank holder cylinder	kW	75 kW × 1
19	Oil pump displacement	L/Min	250

3. List of Main Supporting Components & Manufacturers

No.	Component Name	Manufacturer
1	Servo motor	Inovance / Veichi
2	Oil pump	Jiangsu Hengyuan
3	Electric motor	Weihai Guifeng
4	Cartridge valve	Jining, Shandong
5	Pre-fill valve	Nantong Huadong
6	Main electrical components	Delixi
7	Suction oil filter	Wenzhou Jingtong
8	PLC	Xinje

4. Machine warrantee :

 The equipment is covered by a 1-year warranty. Within the warranty period, the Supplier shall provide timely free maintenance for all equipment faults, and replace damaged parts free of charge if the damage is not caused by human error.

 After the warranty expires, the Supplier will continue to offer comprehensive and preferential technical support as well as spare parts supply to the Buyer.
